The EMM-4L multimeter is ideal to combine the maximum easiness of operations together with advanced features. The flush mount execution 96x96mm housing joins the modern disegn with the tool-less mouting of the device body. With its reduced depth is ideal for small spaces inside the electrical panel. The backlighted LCD display provides a user-friendly interface and easy to read in all lighting conditions.

The EMM-4L is also provided with a RS-485 interface with Modbus protocol to consent the integration in supervision systems.

Description

• Digital three-phase multimeter
• Flush-mount, standard 96x96mm housing
• Backlight LCD screen
• 4 navigation keys for functions and settings
• Built-in RS485 interface (Modbus RTU)
• Pulse output (optional)
• TRMS measurements
• Wide selection of electrical measures, including voltage and current THD
• Wide range power supply (85-264 VAC)
• Programming from front panel
• Password protection for settings
• Tool-less panel mount

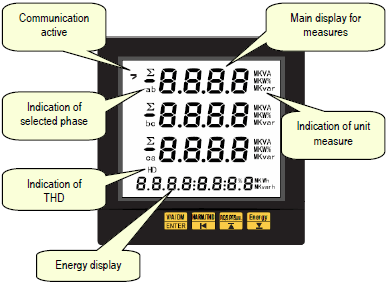

Display Indications
