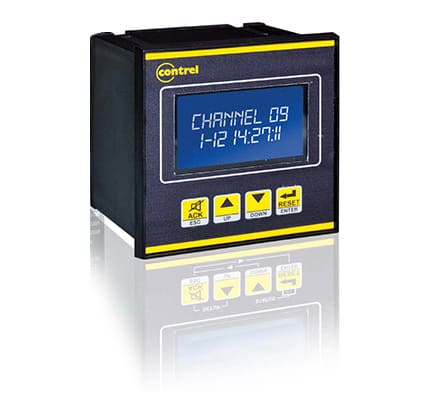

The RMS-12 data concentrator is a device that extend the potential of HRI family, providing a data collector function togheter with a supervision interface.

Programming

The device offers broad programming possibilities through its user-friendly digital display menu and four selection keys.

Description

• Graphic LCD display, 128x64 pixels
• Flush-mount, standard 96x96mm housing
• Visualization and setting through 4 keys
• Built-in buzzer
• Two built-in RS485 interface
• Easy and fast navigation
• Programming from front panel

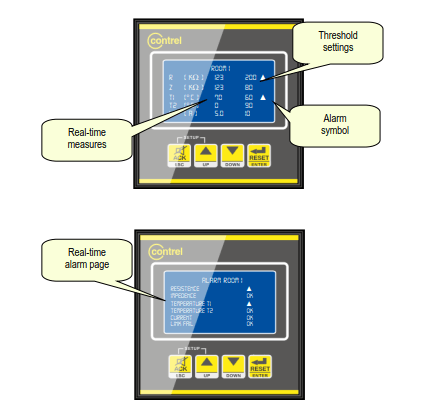

Front keyboard

ENTER key – Used to confirm a choice and to switch between visualization modes.

ESC key – Used to exit from visualization and settings menu.

▲and ▼ keys – Used to switch between medical locations setting, to select among possible choices and to modify settings (increment/decrement).

ESC and ▲keys – Used to enter in settings menu
